Product Introduction

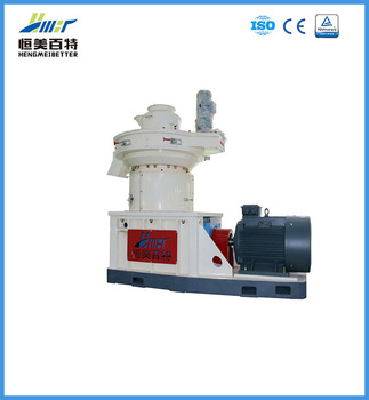

ZLG fuel pellet mill is suitable for making the biomass fuel pellet, such as sawdust pellet, rice husk pellet, straw pellet etc. This system is a full set of mechanized production equipment. It can convert biomass raw material and solid waste into energy fuel with high density.

Working Principle

The material into the granulating room, the mold rotating and roller rotation itself .

so that the material extruded into the mold hole, made into a cylindrical bar, after a knife cutting at the outlet, when pellet formed , they get out of the granulation chamber.

Advantage

1. Vertical type, vertical feed, prevent die buildup efficiently;

2. Mould stationary, pinch roller rotating, make the material

well-distributed, enhance productivity.;

3. Double-deck mould, one machine dual use, one set mould can produce two kind of particle, which lower the cost efficiently;

4. Two set lubricating device, pinch roller automatic lubrication, gear case circulating lubrication, guarantee the machine smooth running for a long time.;

5. Variable die speed allows for ongoing optimization of the production process and pellet quality, based on the feed formulation, and also extends the lifetime of the die;

Raw Material

Most of  agricultural  and forestry waste, such as corn straw, sawdust, plant waste, bamboo powder, grass, sunflower stalk, straw, rice husk, wood chips, dry branches etc.

Big material should be crushed at first, and its size after crushing should not be bigger than 2/3 diameter of pellet, and moisture should be 10-15%.

Finished Granule

ZLG vertical l ring die pellet mill is mainly used for making all kinds of  fuel pellets, the pellets can be widely used in home, hotel, factory, power station and so on.

Diameter range for fuel pellets: 4-12 mm
Length range for fuel pellets: 0.5-18 cm                                                                        Capacity: 1-15T/H
Quality guarantee: 1 years except wearing parts

We provide the complete fuel pellet production line. (It can be customized according to your requested)It mainly contains Crusher, Dust Catcher, Drying Machine, Mixer, Sieving Machine, Pellet Mill, Cooling Machine,  Packaging Machine, etc.

The final pellet has good quality and meet the EU standard.
