- Size: 12000*2550*3900
- Place of Origin: JINAN,CHINA
- Brand Name: hengmeibaite
- Model Number: HM0938F1210 HM0938F1214 HM1149FE1315 M1349FE1318
- Weight: 39000.000 kg

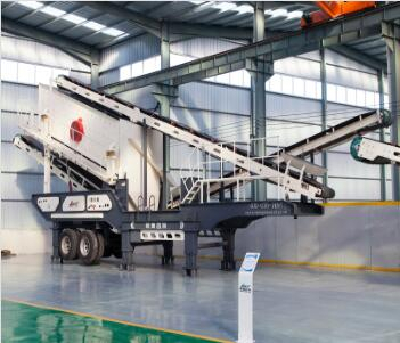

I produced the counter-mobile crushing station using the latest manufacturing technology, high-quality high-chromium plate hammer, wear-resistant counterattack lining, big crushing ratio, coupled with the crusher itself refined grain shape characteristics of quality, so that the movable sleeve crushing unit equipment has a broader scope.
Features:
High-performance crusher;
Supporting the installation of the motor and control box integration;
Car feeder, vibrating screen, belt conveyor
Good mobility, compact and easy to use;
Traction steering shaft to facilitate road transport;
Stable performance, easy maintenance; flexible configuration;
Car installation support, device-site installation fast and convenient;
Cost savings, reduce costs
- Size: 12000*2550*3900
- Place of Origin: JINAN,CHINA
- Brand Name: hengmeibaite
- Model Number: HM0938F1210 HM0938F1214 HM1149FE1315 M1349FE1318
- Weight: 39000.000 kg
model (mm) | HM0938F1210 | HM0938F1214 | HM1149FE1315 | HM1349FE1318Ⅱ |
Transport length (mm) | 12000 | 12000 | 13900 | 15450 |
Transport width (mm) | 2550 | 2500 | 2900 | 2950 |
Transport height (mm) | 3900 | 3900 | 4450 | 4500 |
The maximum length (mm) | 12500 | 12500 | 13900 | 15450 |
Maximum width (mm) | 3250 | 3260 | 3250 | 3250 |
Maximum height (mm) | 5100 | 5200 | 5200 | 5200 |
weight (T) | 39 | 44 | 54 | 62 |
Crusher Model | PF-1210 | PF-1214 | PFE-1315Ⅲ | PFE-1318Ⅲ |
Maximum feed (mm) | 350 | 500 | 600 | 700 |
Capacity (T/h) | 70-130 | 130-200 | 180-320 | 240-400 |
Feeder Model | GZS380×95 | GZS380×95 | GZS490×110 | GZS490×130 |
Main Belt Model | B800×8.5M | B800×8.5M | B1000×9.5M | B1200×11M |
Side of the belt conveyor type (optional) | B500×3.2M | B500×3.2M | B650×4M | B650×3.2M |
Engine Unit Type (optional) (kw) | 320 | 320 | 400 | 440 |
Separators model (optional) | RCYD(C)-8 | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-12 |
