- Place of Origin: JINAN,CHINA
- Brand Name: hengmeibaite
- Model Number: HIGH 0.8 * 8 * 1 type
Applications:
Drying wet material pollution prevention requirements. For new energy, chemical, foundry sand, abrasive wheel, pharmaceutical products and other materials mixed coal drying operation. After drying the moisture content of the material can reach 0.3-3%.

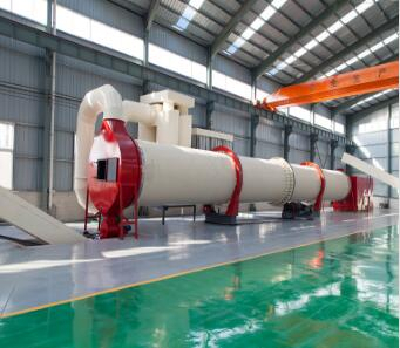

Hot air from the stove into the dryer cylinder, the material from the feed inlet into, in the drying machine lifting plate material is raised, then the hot air contact with the material, the material away in the water. Material from the discharge port out of the hot air is pumped from the upper end. Traveling mainly by promoting the role of material lifting plate.
Drum dryer, himself alone will not work, coupled with the general need, the heat source (stove), fans, Shaq dragon, and sometimes dust removal equipment.
Drum dryer itself from the cylinder, inlet, outlet opening ring, aperture, composition.
- Place of Origin: JINAN,CHINA
- Brand Name: hengmeibaite
- Model Number: HIGH 0.8 * 8 * 1 type
product name | MODEL | Power (KW) | Fan power (KW) | Weight (T) |
roll cylinder bake dry machine | HJGHΦ0.8×8×1 | 4 | 5.5 | 3.8 |
HJGHΦ0.8×12×1 | 4 | 5.5 | 5.21 | |
HJGHΦ1.0×8×1 | 5.5 | 5.5 | 4.2 | |
HJGHΦ1.0×12×1 | 5.5 | 5.5 | 6.27 | |
HJGHΦ1.2×10×1 | 5.5 | 7.5 | 6.9 | |
HJGHΦ1.2×12×1 | 5.5 | 7.5 | 8.34 | |
HJGHΦ1.4×8×1 | 5.5 | 11 | 7.58 | |
HJGHΦ1.4×12×1 | 7.5 | 11 | 11.38 | |
HJGHΦ1.4×15×1 | 7.5 | 11 | 12.47 | |
HJGHΦ1.5×8×1 | 5.5 | 11 | 9.59 | |
HJGHΦ1.5×12×1 | 7.5 | 11 | 12.98 | |
HJGHΦ1.5×15×1 | 11 | 15 | 13.8 | |
HJGHΦ2.5×24×1 | 22 | 37KW | 49.97 | |
HJGHΦ2.5×12×3 | 18.5 | 55KW | 50.63 | |
HJGHΦ2.8×20×1 | 22 | 45KW | 52.3 | |
HJGHΦ2.8×24×1 | 22 | 45KW | 58.8 |
